IPX3 to IPX6 Spray Waterproof Testing Equipment
This spray waterproof testing equipment from HongCe evaluates enclosure water ingress protection for IPX3 to IPX6 ratings. It simulates rain, splashes, and high-pressure spray conditions to help manufacturers verify product compliance with international IP safety standards accurately, safely, and consistently.
Reference Standards
IEC 60529:
- Clause 14.2.3: IPX3 – Water spray test
- Clause 14.2.4: IPX4 – Splashing water test
- Clause 14.2.5: IPX5 – Water jet test
- Clause 14.2.6: IPX6 – Powerful water jet test
ISO 20653: Road vehicles degrees of protection (IP code)
EN 60529: European enclosure protection standard
Key Features
- Comprehensive IPX3, IPX4, IPX5 and IPX6 waterproof testing in one integrated system
- Adjustable spray pressure and flow rate for precise standard compliance
- High-quality stainless steel water tank with corrosion-resistant construction
- Stable nozzle layout ensures uniform and repeatable spray distribution
- Intelligent control system for easy operation and parameter configuration
Technical Specifications
| Parameter |
Specification |
| Power supply for machine |
AC380V, 60Hz |
| Power supply for test sample |
≤ 440Vac 16A |
| Test range |
IPX3 to IPX6 |
| Test time |
0-99min |
| Water tank |
800L (customizable) |
| Water tank material |
SUS304# stainless steel |
| IPX3, X4 Specifications |
| IPX3,4 Spray nozzle |
IEC 60529 Figure 5 Brass head |
| Pressure Gauge |
0 - 1.6 bar |
| IPX3,4 Spray Flow |
10 L/min -15 L/min |
| Number of Holes |
121 |
| Diameter of Nozzle Holes |
Φ0.5mm |
| Nozzle Material |
Brass (H62) |
| Flapper Cover Angle |
30° |
| IPX5, X6 Specifications |
| Aperture of jet nozzle |
Ф6.3mm (IPX5); Ф12.5mm (IPX6) |
| Spray flow of jet nozzle |
12.5L/min -18.75 L/min (IPX5); 100L/min -150 L/min (IPX6) |
| Rotary Table |
| Diameter |
Φ600mm, Φ800mm and Φ1000mm available |
| Rotation Speed |
1r/min |
| Tiltable angle |
15° |
| Test angle of rotation |
90°, continuous rotation |
Applications
- Electrical and electronic product waterproof testing
- Automotive parts and connectors water ingress testing
- Lighting fixtures (indoor & outdoor) IP protection verification
- Household appliances waterproof performance evaluation
- Outdoor communication equipment testing

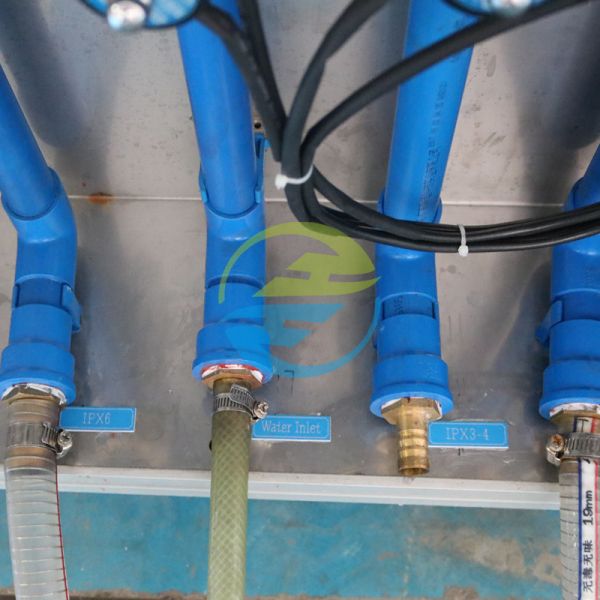

Product Image
Frequently Asked Questions
Q1: Can one system really cover IPX3 to IPX6?
Yes. This equipment integrates multiple spray and jet modes, adjustable through the control system.
Q2: Is customization available for test area size?
Absolutely. Test space and structure can be customized based on your product dimensions.
Q3: Is the equipment suitable for certification labs?
Yes. It is widely used by third-party testing labs and complies with IEC and ISO standards.
Q4: What kind of water quality is required?
Clean tap water is sufficient; the system includes a circulation and filtration design.
Q5: How difficult is daily maintenance?
Very simple. Modular design allows easy cleaning and nozzle inspection.
